Fibro Rotary Indexing Tables



Rotary indexing tables are used as:

Fibro Automation

Request more
This e-mail address is being protected from spam bots, you need JavaScript enabled to view it


Fibro Indexing Tables

  • central units in rotary special-purpose machines for transporting workpieces and positioning them accurately in each machining station
  • workholders in standard and special-purpose machine tools for efficient, ultra-precise workpiece machining
  • controllable and highly versatile positioning devices for machining workpieces from different angles
  • toolholders for high-speed tool changes on a wide variety of machine tools

FIBRO’s comprehensive range of rotary indexing tables offers users any number of options for rationalizing and automating production processes, and of course for enhancing production quality.

Rotary indexing tables are available in any format or size from 6" to 63" in diameter.


FIBROTAKT® Standard with Face Gear

Fibrotakt Standard Index Table

FIBROTAKT® indexing tables have been designed for precision divisions and high working loads. Interlocking in the FIBRO face gear ensures maximum precision and rigidity long term. There are different versions and drive types to suit very application. Whatever the assembly weight, the built-in FIBROTAKT® indexing table for phased indexing machines combines minimum switching times with maximum precision and rigidity. It features a non-lifting indexing table, gear drive and easy access from below.

FIBROTAKT® Flush-Mount Tables

Fibrotakt Flush-Mount Index TablesFIBROTAKT® Flush-Mount Tables were developed for use on rotary transfer machines. The concept derives from the well-tried FIBROTAKT®-series and is based on the principle of combining indexing and locking in a non-lifting system of face gear rings.

Planetary Indexing Systems

Fibro Planetary Intexing TableRotary Indexing Tables with planetary units are the "Specialists" when it comes to multi-face machining on Rotary Transfer Machines. Their arrangement details are as varied as are the workpieces and the machining requirements. FIBRO, with their immense experience inFibro Planetary Indexing Systems the entire field of rotary indexing, have the specialists, the equipment, and a vast range of batch-manufactured indexing elements to meet the most exacting demands.

FIBROTOR® Indexing Tables

Fibrotor Indexing TableFIBROTOR® indexing tables are designed with a worm roller drive for optimised rapid switching operations. They are used in welding and assembly operations, as a magazine table and for handling and feeding applications in automated processes. FIBROTOR® NC indexing tables have a worm roller drive of constant pitch. Any size of divisions are possible when used in conjunction with NC control.


Fibro-GSA Automation

The modular system

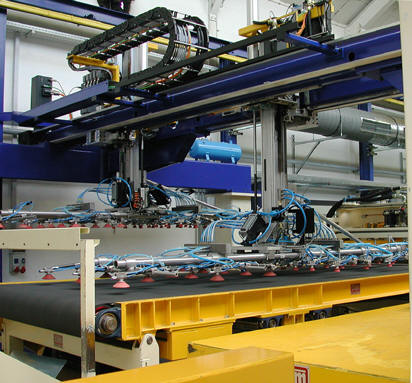

Fibro GSA AutomationThe building-block system is the perfect way for users to put together their own technically – and economically – optimized industrial automation solutions.

By adopting the modular approach, i.e. adding together individual modules such as linear and rotary manipulators, grippers and guide rails with carriages, users can assemble anything from a simple pick-and-place system to a multi-axis robot. Various models and sizes of mass-produced module are available, capable of transporting loads of up to 3.150 kg or more and of traversing at speeds of up to 6.5 m/sec over distances of up to 30 meters or more.

The different families of modules can be combined, and users are free to mix and match the various kinds of drive: electric, hydraulic or pneumatic. The resulting versatility means that each task can be tackled in the most appropriate way.
